Electric Power: 5.5KW

Supply voltage: 380V 50HZ

Oil tank capacity:200L

Flow of oil pump:10L/min

Rated pressure of hydraulic system：2～20Mpa

Max. thrust：60T

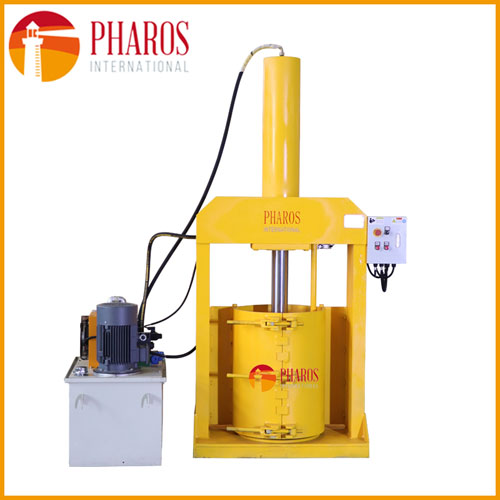

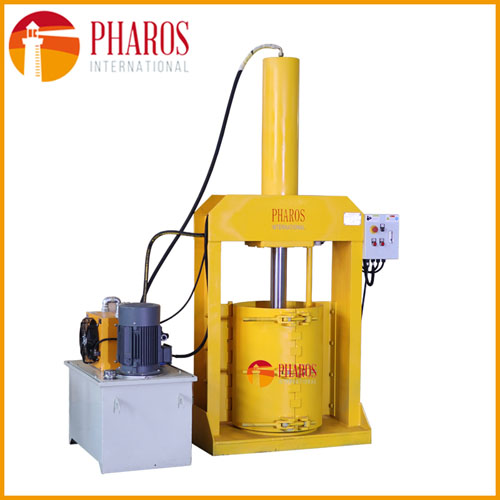

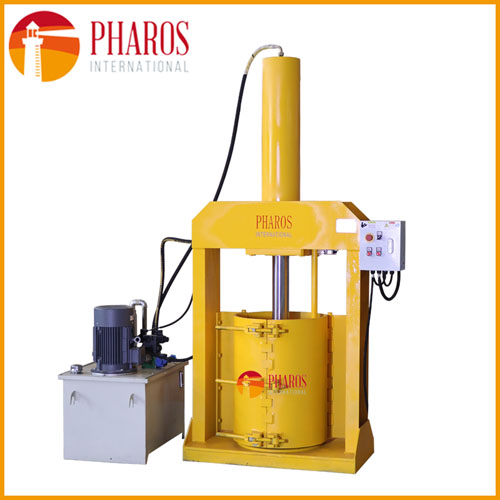

Hydraulic swager is corollary equipment with triple motion agitator or multifunctional dispersator, which press or split charging high-viscosity compound from agitator.

This machine is composed of hydraulic controlling system, stander, hydro cylinder, platen,lift supporting frame, controlling box etc...And two sides separate hydraulic upright post lifting and direct pressure upper discharging structure can be designed as well, its features as follows:hydraulic cylinder can be freely adjusted within every pressure level of 0-25Mpa, cylinder rod can stay at any position and can constant work under the condition of pressure maintaining and constant pressure. Platen rubber ring contacts with inner cylinder wall(can with vacuum defoamatio device), which prevents material getting out. This machine owns easy structure, convenient operation advantages, and pressure can be designed in accordance with material viscosity.
